AP8000C

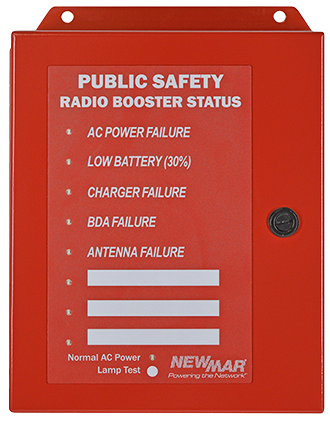

Annunciator for Public Safety Radio Booster
The DuraComm Annunciator provides visual and audible alarms at the installed location of a Public Safety Radio Booster in an Emergency In-Building Radio system. This annunciator is designed to monitor NFPA 72 IDC (Initiating Device Circuit) wiring for Trouble (Alarm) and Fault (Open or Ground) and report the status to a Fire alarm panel via Form C relay contacts. The power input is 10-58 VDC with an optional internal 12 Volt 12-hour backup battery. An audible alarm will sound when a fault or trouble alarm is triggered. The Alarm can be manually muted until a normal condition is restored, or until a 24-hour unmute occurs. Audible alarm Mute and Unmute are located inside of the enclosure on the PCB for better security.
